How to Programme a Token on a Microcoin SP

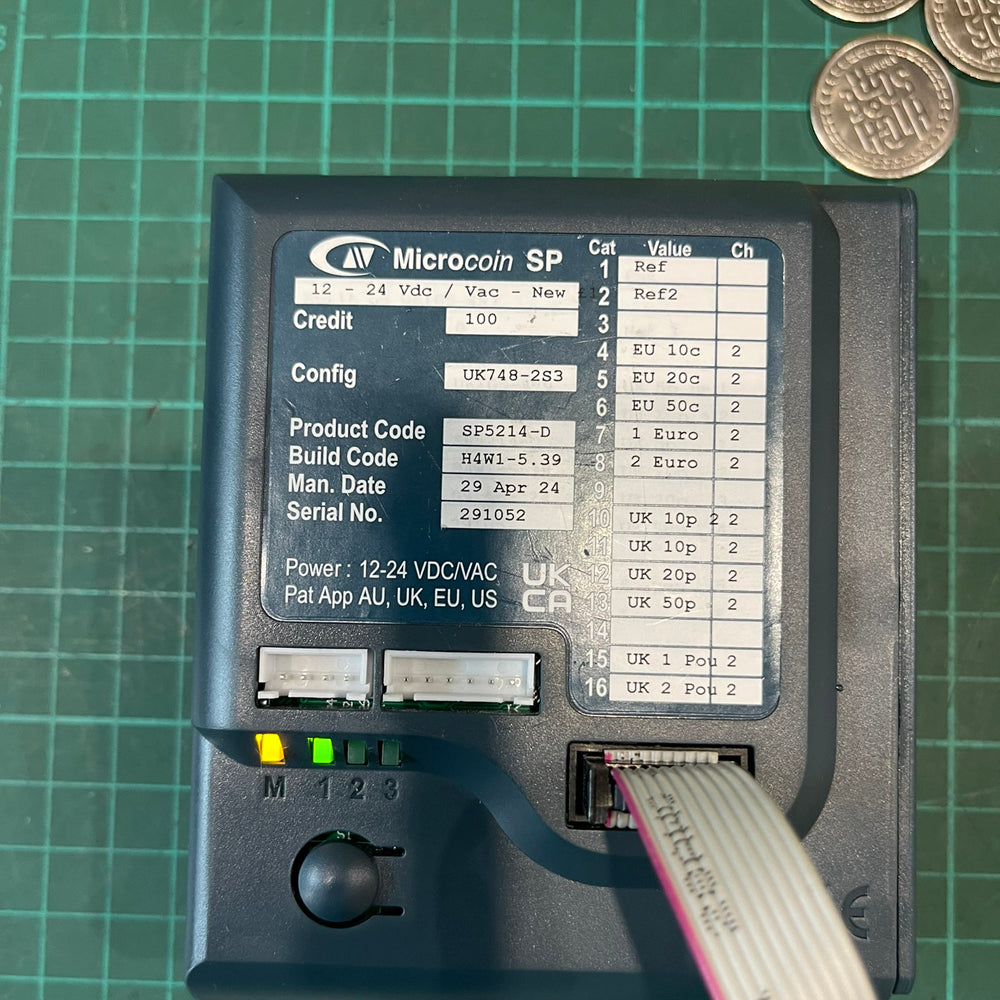

Make sure your mech has power. You should see the green LED light.

Next, press the button 5 times until the second LED changes to flashing orange.

Choose an empty channel. Either do not press the button to select channel 1 or press 1 time for channel 2 and 2 times for channel 3.

Next, insert the token that you wish to programme. We recommend you insert between 10 and 20 tokens to allow for accuracy of the token being recognized.

When you have inserted the last token, press the button 1 time to confirm that was the last token.

The LED will go orange in colour.

Next you need to set the output validator line you want it by pressing the button. On this example we have chosen output 2. The second of the 3 LEDs is green. You can press the button again to move to the next channel.

Insert the value of the coin that you wish the token to be equivalent to. For example one token is equivalent to one pound, so insert a one pound coin.

Now press the button once.

Now your token is programmed, so just test that it works.
